OPERATIONAL INSTRUCTIONS

Read these instructions carefully before you attempt to use this product. Only qualified engineer/electricians suitably trained should undertake the installation and commissioning of this product.

Manifolds Vacuum Filtration is used primarily in microbiological and analytical procedures that involve collecting a particulate (bacteria, precipitate, etc.) from a liquid suspension. Liquid poured into a funnel passed through a filter, which retains the particulate, and filtrate can be collected into a filter flask, directly or via a vacuum manifold. Applying vacuum reduces process time compared to gravity flow.

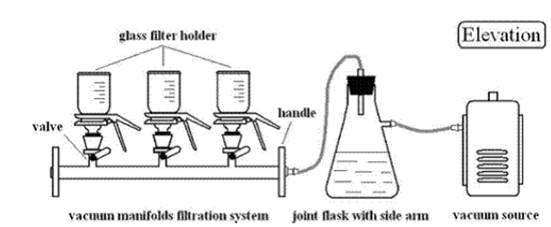

According to the chart ,install product.

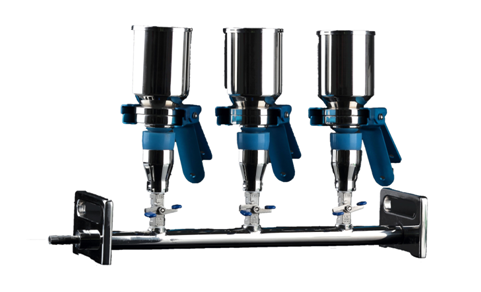

Vacuum Filtration Holders and Manifolds are particular designed and produced for several samples filtrate at the same time. Because each filter holder have individual control valve, only one set vacuum pump can sustain the single or Multi-branch manifold filter operate together.

While stainless steel nature of the Vacuum Filtration Holders and Manifolds can filtrate at 180℃ temperature ;and the high-quality extra hard glass is elegant in workmanship, and be able to bear up  200℃ range of temperature.

The clamp of aluminum alloy designed rational and closed, it can make the filter bowl together with the middle filter head become an organic, and assure them airproof not to leak. Simultaneity, type 316Lstainless steel resistant to acids alkalis，and be able to bear corrosion, easy to high-temperature sterilization. Therefore, it makes the analyze result much more stabilization and trustiness.

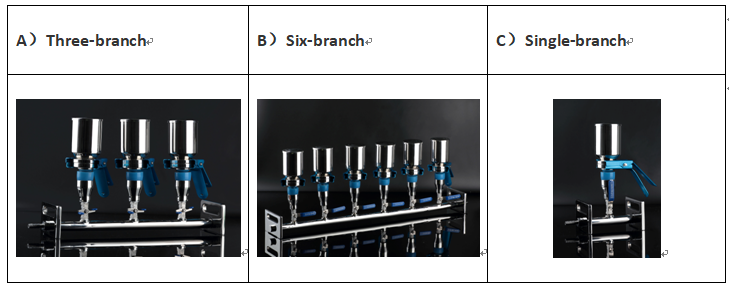

A)  Three-branch
B)  Six-branch
C)  Single-branch
